The qtisocketsink is a GStreamer sink element that transmits GstBuffers between processes over UNIX domain sockets. It is designed for zero-copy buffer sharing between tightly coupled components, such as a media pipeline and an AI inference engine running in a separate process or container. The element sends FD-backed buffers, such as DMA buffers, to a receiving process that uses qtisocketsrc as first element in pipeline to receive FD-backed buffers. This avoids memory copies, reduces CPU overhead, and improves overall performance. To use qtisocketsink, provide a valid UNIX socket path through the socket property. The socket file must use the .sock extension. Buffer lifetime is managed through reference counting mechanism when buffers are sent and returned back. Supported buffer types include:
  • video/x-raw for raw video frames
  • neural-network/tensors for ML tensor data
  • text/x-raw for textual or structured metadata
qtisocketsink is well suited for modular and containerized pipelines where capture, transform, inference, encoding, or visualization run in separate processes. Common use cases include:
  • Sending raw camera or decode video frames from capture pipeline running in separate process to another process for encoding/ live streaming, live display, or AI inference.
  • Sending AI tensor data neural-network/tensors between the pipelines running in separate processes.
  • Streaming AI metadata, such as bounding boxes, using text/x-raw

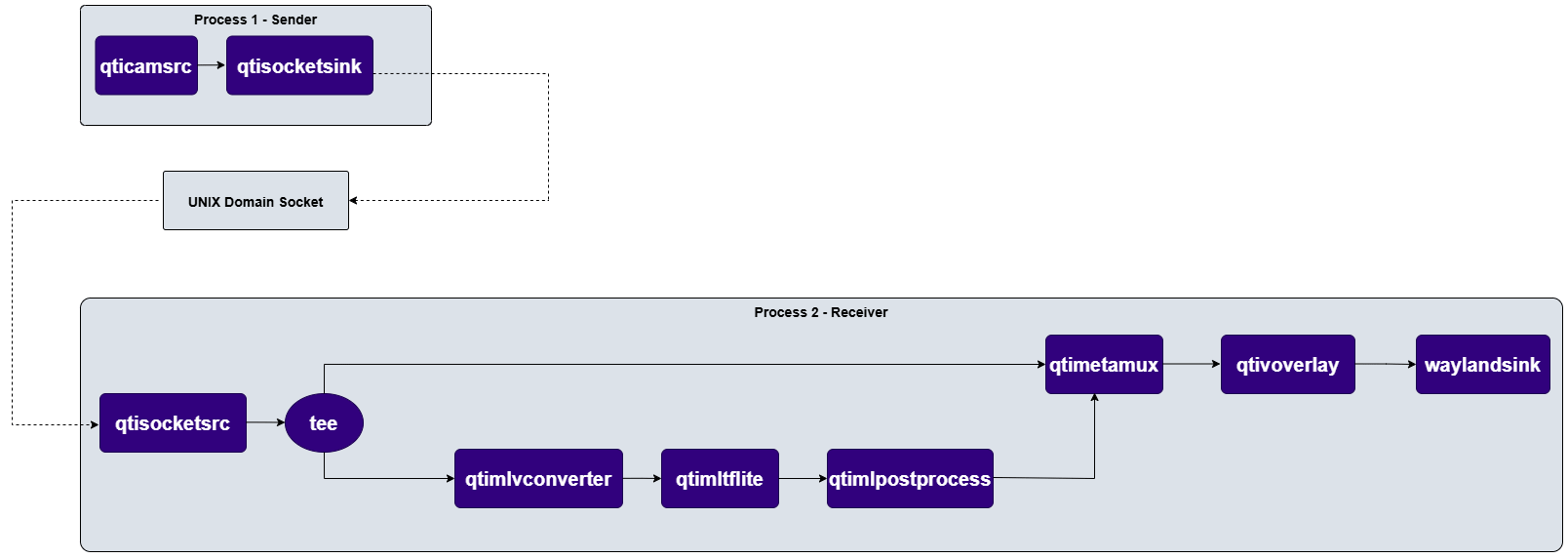

By using FD-backed buffers without memory copies, qtisocketsink enables efficient real-time communication between GStreamer components and is well suited for embedded systems, edge AI, and scalable media pipelines. As illustrated in the diagram, qtisocketsink enables the transmission of buffers from a camera source qticamsrc, to a separate process or container, where qtisocketsrc receives the buffers for subsequent processing, including encoding, muxing, or storage. This architecture facilitates a modular pipeline design, supports containerized deployment, and enables efficient zero-copy buffer sharing.

​
Hierarchy

GObject
   GstObject
      GstElement
         GstBaseSink
            qtisocketsink

​
Pad Templates

​
sink

| Capabilities |
Capabilities
video/x-rawformat: NA
text/x-rawformat: NA
neural-network/tensorsformat: NA
Availability: Always
Direction: sink

​
Element Properties

PropertyDescription
socketLocation of the Unix Domain Socket.

Type: String
Default: NULL
Flags: readable/writable (changeable only in NULL or READY state)

​
Example Pipeline

1

Download Required Files

FileDownloadSave as
Sample videoInput videovideo.mp4
2

Copy files to device

# Replace $HOME to the appropriate device path before running the commands.
# For QLI:    /root
# For Ubuntu: /home/ubuntu
# Modify this based on your platform and ensure files are copied to the correct location on the device.
# Run from your host machine — replace <user> and <device-ip>

ssh <user>@<device-ip> "mkdir -p $HOME/{media,media/output}"
scp video.mp4   <user>@<device-ip>:$HOME/media/
3

Connect to device

# Run from your host machine — replace <user> and <device-ip>
ssh <user>@<device-ip>
4

Set environment variables

Run below command on your device
export SRC_VIDEO_NAME=video.mp4
5

Run the pipeline

gst-launch-1.0 -e --gst-debug=2 \
filesrc location=$HOME/media/$SRC_VIDEO_NAME ! qtdemux ! h264parse ! \
v4l2h264dec capture-io-mode=4 output-io-mode=4 ! video/x-raw,format=NV12 ! queue ! \
qtisocketsink socket=/tmp/qimsdk.sock

#To receive data with above pipeline and display, run the Example Pipeline from qtisocketsrc in a different terminal

​

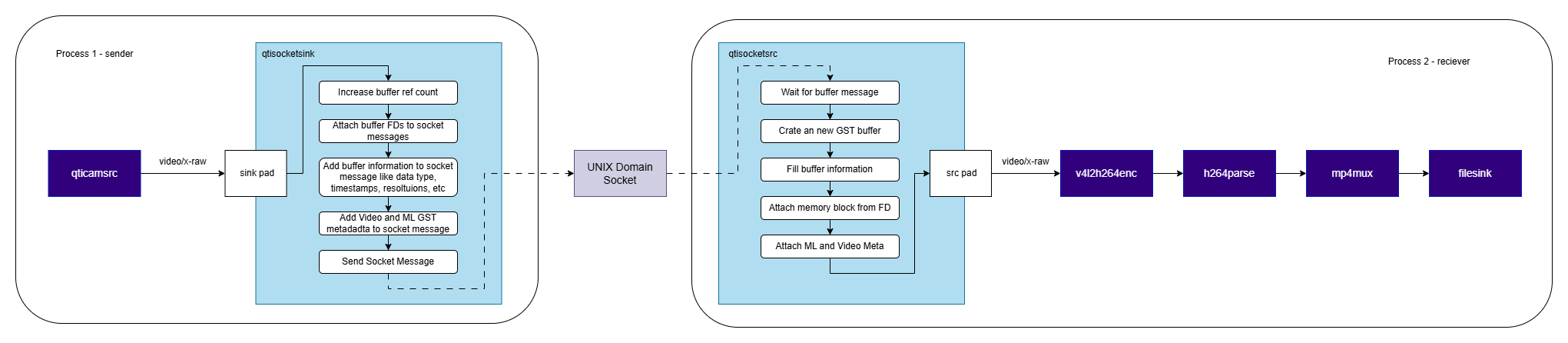

Internal Architecture Details

​
Core Components

​
Sink Pad

Receives GstBuffer objects from upstream pipeline elements.

​
Socket Manager

Establishes and manages a UNIX domain socket connection to the consumer process.
Transfers buffer file descriptors over the socket.

​
Buffer Tracker

Tracks buffer ownership and reference counts after transmission.
Prevents buffer release until the receiving process returns ownership.

​
Timing Controller

Applies timing-based drop decisions using max-lateness.
Throttles outgoing data rate using max-bitrate.

​
Async Transition Handler

When async=false, the element completes the transition to PAUSED synchronously instead of asynchronously.

​
Data Flow

​
Buffer reception

Buffers are received on the sink pad from upstream elements. To be transferable over a UNIX domain socket, buffers must be backed by a valid file descriptor, such as DMA-backed memory.

​
Socket Transmission

For each eligible buffer, the element sends the associated file descriptor to the receiver process over the UNIX domain socket. Any required metadata is transmitted either together with the file descriptor or through a separate channel, depending on implementation.

​
Buffer Reference Count Management

When a buffer is sent to the receiver, the plugin increments its internal reference tracking. Once the receiver returns the buffer, the plugin decrements the corresponding reference count. A buffer is released only after all outstanding references have been returned.

​
Timing and Drop Control

If async=false, the element performs a synchronous state transition to PAUSED. max-lateness defines the maximum allowed delay for a buffer relative to its expected presentation time. Buffers exceeding this threshold are dropped. max-bitrate limits the transmission rate by capping the total number of bits sent per second.

​
Usage

Ensure you have followed the prerequisites before continuing

​
Encode raw frames in a secondary process to a file

This example demonstrates a camera pipeline executing in one process and transferring raw frames to a second process, which receives the frames, performs encoding, and muxes the resulting stream into an output file. Start 2 separate shell consoles In 1st console:
gst-launch-1.0 -e --gst-debug=2 qticamsrc ! video/x-raw,format=NV12,width=1920,height=1080,framerate=30/1 ! \
qtisocketsink socket=/tmp/docker/socket.sock
In 2nd console:
gst-launch-1.0 -e --gst-debug=2 qtisocketsrc socket=/tmp/docker/socket.sock ! video/x-raw,format=NV12,width=1920,height=1080 ! \
queue ! v4l2h264enc capture-io-mode=4 output-io-mode=4 ! queue ! h264parse ! mp4mux ! queue ! filesink location=$HOME/media/video.mp4

​
Render raw frames from a secondary process to display

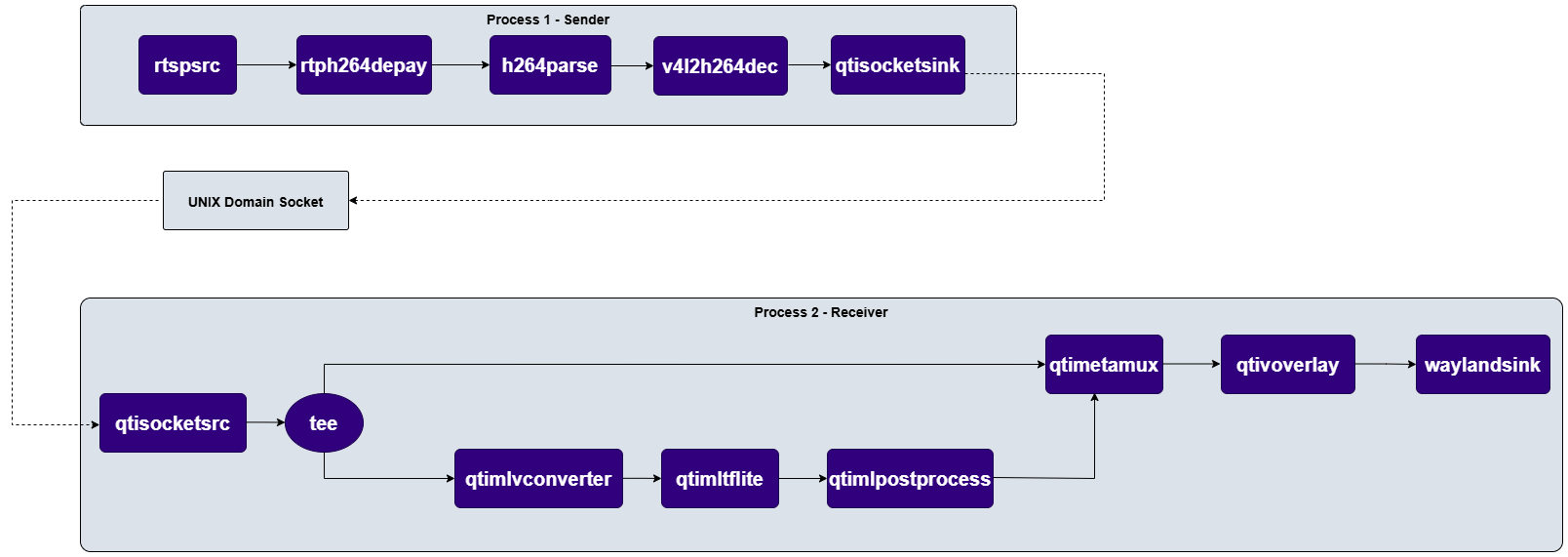

This example demonstrates a camera pipeline executing in one process and transferring raw frames to a second process, which receives the frames, performs AI inference, Overlay and rendering the composed out to a display. Start 2 separate shell consoles In 1st console:
gst-launch-1.0 -e --gst-debug=2 rtspsrc location=rtsp://127.0.0.1:8900/live ! rtph264depay ! video/x-h264,colorimetry=bt709 ! h264parse ! \
v4l2h264dec capture-io-mode=4 output-io-mode=4 ! queue ! qtisocketsink socket=/tmp/socket.sock
In 2nd console:
gst-launch-1.0 -e --gst-debug=2 qtisocketsrc socket=/tmp/socket.sock ! video/x-raw,format=NV12,width=1920,height=1080,framerate=30/1 ! tee name=t \
t. ! queue ! qtimlvconverter ! queue ! \
qtimltflite delegate=external external-delegate-path=libQnnTFLiteDelegate.so external-delegate-options="QNNExternalDelegate,backend_type=htp;" model=$HOME/models/yolov8_det_quantized.tflite ! \
qtimlpostprocess module=yolov8 results=5 labels=$HOME/labels/yolov8.json settings="{\"confidence\": 70.0}" ! text/x-raw ! metamux. \
t. ! qtimetamux name=metamux ! queue ! qtivoverlay ! waylandsink async=false sync=true fullscreen=true
