Overview

qtisocketsrc is a GStreamer source element designed to receive GstBuffer objects from another process over a UNIX domain socket. It is typically used together with qtisocketsink, forming a pair that enables efficient inter-process communication between separate GStreamer pipelines running in separate processes. A key feature of qtisocketsrc is its support for zero-copy data transfer using file descriptor-backed buffers, such as DMA buffers. Instead of copying media data from one process to another, the buffer ownership is passed through the socket using file descriptors. This significantly reduces memory bandwidth usage and CPU overhead, while improving overall performance and latency! The element listens on a UNIX socket file, usually with a .sock extension, which is specified through the socket property. When qtisocketsink sends a buffer, the source receives the associated file descriptor, reconstructs it into a GstBuffer, and injects it into the downstream GStreamer pipeline. From that point onward, the buffer behaves like any other standard GStreamer buffer and can be consumed by elements such as encoders, inference engines, converters, or display sinks. This design is especially useful in modular media architectures where different stages of a pipeline are separated into independent processes or containers. For example, a camera capture pipeline can run in one process, while an AI inference pipeline or video encoding pipeline runs in another. qtisocketsrc acts as the bridge between them, allowing media to flow efficiently without requiring shared memory copies or tight coupling between components. The element supports multiple data types, making it flexible for different workloads:
  • video/x-raw — for raw video frames
  • neural-network/tensors — for tensor data used in machine learning workflows
  • text/x-raw — for textual metadata or structured annotations.
Because of this flexibility, qtisocketsrc can be used not only for video transport, but also for AI and metadata pipelines. It can receive raw camera frames for further processing, ingest tensor outputs from an inference stage for post-processing, or consume metadata such as bounding boxes, labels, or classifications for overlay and logging. In practical deployments, this makes qtisocketsrc valuable in embedded systems, edge AI applications, and containerized media platforms where scalability, isolation, and performance are important. By combining zero-copy transport with process isolation, it enables high-throughput, low-latency communication between GStreamer components while preserving a clean and modular pipeline design. As shown in the diagram below qtisocketsink can be used to transmit buffers from a camera source such as qtqmmfsrc to another process or container. On the receiving side, qtisocketsrc ingests these buffers and continues pipeline processing, such as encoding, muxing, or saving the output to storage. This approach enables a modular pipeline architecture, supports containerized deployment, and provides efficient zero-copy buffer sharing between isolated components. Usecase 1

​
Example Pipeline

1

Copy files to device

# Replace $HOME to the appropriate device path before running the commands.
# For QLI:    /root
# For Ubuntu: /home/ubuntu
# Modify this based on your platform and ensure files are copied to the correct location on the device.
# Run from your host machine — replace <user> and <device-ip>

ssh <user>@<device-ip> "mkdir -p $HOME/{media,media/output}"
2

Connect to device

# Run from your host machine — replace <user> and <device-ip>
ssh <user>@<device-ip>
3

Run the pipeline

gst-launch-1.0 -e --gst-debug=2 \
qtisocketsrc socket=/tmp/qimsdk.sock ! video/x-raw,width=1920,height=1080,format=NV12 ! queue ! \
waylandsink fullscreen=true sync=false

#To receive data with above pipeline and display, run the Example Pipeline from qtisocketsink in a different terminal

​
Hieararchy

GObject
   GstObject
      GstElement
         GstBaseSrc
            GstPushSrc
               qtisocketsrc

​
Pad Templates

​
src

Capabilities
video/x-rawformat: NA
text/x-rawformat: NA
neural-network/tensorsformat: NA
Availability: Always
Direction: source

​
Element Properties

PropertyDescription
socketLocation of the Unix Domain Socket.

Type: String
Default: NULL
Flags: readable/writable (changeable only in NULL or READY state)
timeoutSocket post timeout.

Type: Unsigned Integer64
Default: 1000
Range: 0 - 18446744073709551615
Flags: readable/writable (changeable only in NULL or READY state)

​
Internal Architecture

The internal architecture of qtisocketsrc is built around a lightweight but efficient mechanism for receiving media buffers from another process and delivering them into a GStreamer pipeline. Its design focuses on preserving performance, minimizing memory copies, and keeping the transfer of data between processes seamless and reliable.

​
Core Components

​
Source Pad

The source pad is the output interface of qtisocketsrc. Once a buffer is received and reconstructed, it is pushed out through this pad so that downstream GStreamer elements can consume it. In practice, the source pad serves as the handoff point between the socket-receiving logic and the rest of the media pipeline.

​
Socket Listener

The socket listener is responsible for opening, monitoring, and maintaining the UNIX domain socket specified by the socket property. It waits for incoming connections from the sending side, typically qtisocketsink, and listens for buffer transmissions over this local IPC channel. This component acts as the communication entry point for the plugin. It ensures that the source element can continuously receive data from a peer process without requiring shared memory copying or network-based transport.

​
Buffer Importer

The buffer importer takes the received file descriptors and converts them into GstBuffer objects that can be used by GStreamer. Since the incoming data is FD-backed, the importer does not need to duplicate the actual media payload. Instead, it wraps the descriptor and makes the buffer available to the pipeline in a form that downstream elements understand. If additional information such as caps, timestamps, or other metadata is available, the importer can attach that information to the buffer so the receiving pipeline maintains proper media context and synchronization.

​
Buffer Lifecycle Manager

The buffer lifecycle manager is responsible for tracking buffer ownership, usage, and release. Because buffers may be shared across process boundaries, careful management is needed to ensure that resources are not leaked and are released at the correct time. In some cases, the lifecycle manager may also support returning buffers to the sender once downstream processing is complete, depending on the buffer-handling strategy used by the pipeline.

​
Data Flow

The data flow in qtisocketsrc follows a clear sequence from socket setup to buffer delivery. Each step is designed to keep the transfer efficient while preserving the semantics of the original media stream.

​
Socket Initialization

At startup, the plugin opens the UNIX socket specified through the socket property. It then begins waiting for incoming connections from the remote process. This stage establishes the IPC channel that will be used for media exchange. Once the connection is ready, the element is prepared to receive file descriptors and any associated control information sent by the peer.

​
Buffer Reception

When the sender process transmits data through qtisocketsink, qtisocketsrc receives the FD-backed buffers over the socket. These buffers may represent:
  • raw video frames
  • ML tensor data
  • structured metadata or text-based annotations
At this stage, the source element is only receiving the transport representation of the buffer, not copying the underlying memory contents.

​
Buffer Wrapping

After reception, each file descriptor is wrapped into a GstBuffer. This step transforms the incoming IPC payload into a native GStreamer object that downstream plugins can process. If available, the plugin also applies buffer metadata such as caps, timestamps, or other stream attributes. This ensures that the received data remains properly formatted and synchronized within the pipeline.

​
Buffer Output

Once the GstBuffer is prepared, it is pushed out through the source pad into the downstream portion of the pipeline. From this point onward, the data can be consumed by elements such as:
  • encoders
  • inference models
  • converters
  • display sinks
  • post-processing components
This allows the receiving pipeline to continue processing the media stream as if the data had originated locally.

​
Usage

Ensure you have followed the prerequisites before continuing

​

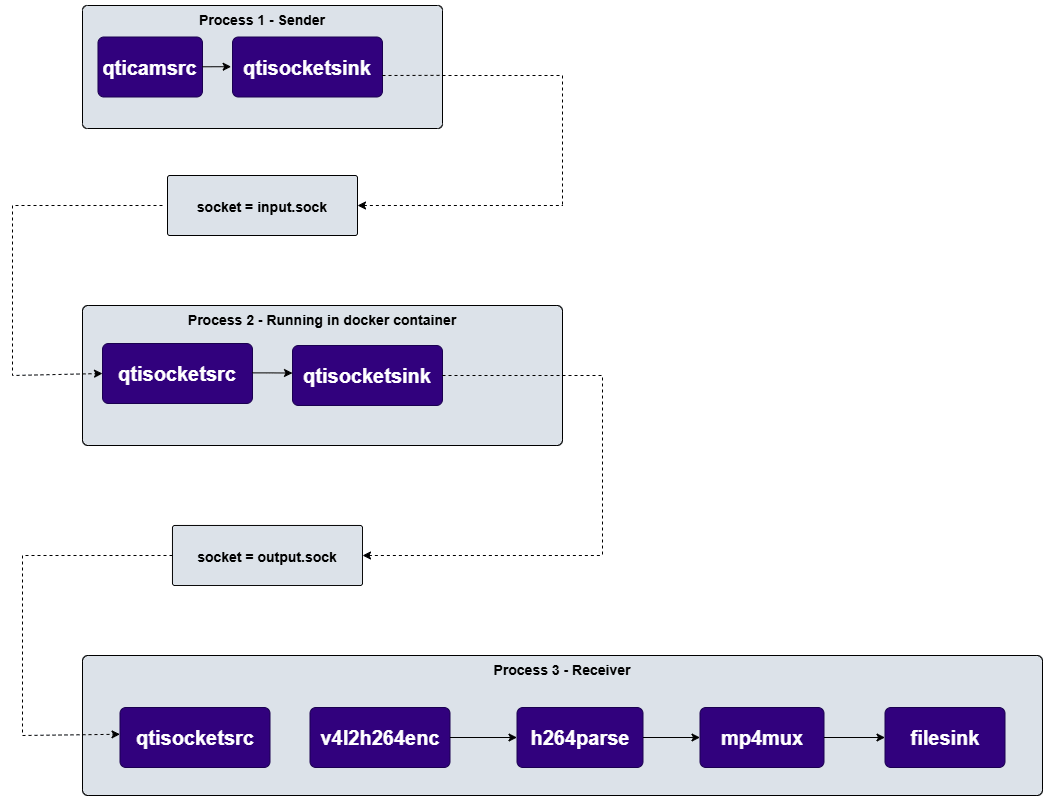

Transmitting camera stream through a Docker container for encoding

1

Console 1 — Receive from container and encode to file

gst-launch-1.0 -e --gst-debug=2 qtisocketsrc socket=/tmp/docker/output.sock ! \
video/x-raw,format=NV12,width=1920,height=1080 ! \
v4l2h264enc output-io-mode=dmabuf-import capture-io-mode=dmabuf ! \
h264parse ! mp4mux ! queue ! filesink location=$HOME/media/output/video.mp4
2

Console 2 — Run Docker container to bridge sockets

docker run -v /tmp/docker:/tmp/docker -ti gst-image /bin/bash -c \
"gst-launch-1.0 -e --gst-debug=2 qtisocketsrc socket=/tmp/docker/input.sock ! \
qtisocketsink socket=/tmp/docker/output.sock"
3

Console 3 — Capture camera and send to container

gst-launch-1.0 -e --gst-debug=2 qticamsrc ! video/x-raw,format=NV12,width=1920,height=1080,framerate=30/1 \
! qtisocketsink socket=/tmp/docker/input.sock
