Overview

The qtimetamux element is a core component of an AI-enabled GStreamer pipeline. Its purpose is to synchronize post-processed AI/CV results with the original media buffer and attach those results as GstMeta using the standard metadata mechanism provided by GStreamer.

In practice, outputs generated by ML post-processing stages — such as:

Bounding box coordinates
Class labels
Segmentation masks
Key points
Motion vectors
Other custom AI/CV metadata

Can be associated with the corresponding video or audio frame and carried forward through the pipeline as a single, unified buffer. This design makes it easier to build pipelines where inference results remain tightly coupled with the original frame. Downstream components can consume both the media buffer and its metadata without needing separate synchronization logic. By embedding metadata directly into the frame, qtimetamux enables several common AI pipeline patterns:

Live visualization — Metadata can be consumed by overlay elements such as qtivoverlay to render bounding boxes, labels, and other inference results directly on the video output.
Daisy-chained AI pipelines — The metadata-bearing buffer can be passed to a subsequent inference stage, allowing multi-stage AI workflows where the output of one model feeds the next.
Application-level access — The resulting buffer can be sent to an appsink, giving a custom application access to both the media frame and the attached metadata for business logic or decision-making.
Metadata serialization and external integration — The metadata can be forwarded to qtimlmetaparser, which converts it into JSON. That JSON can then be published to external systems such as MQTT, Kafka, or a REDIS server via qtiredissink.

In addition to AI inference outputs, qtimetamux is also capable of attaching other metadata types such as motion vectors, making it useful for both AI and broader computer-vision-based workflows.

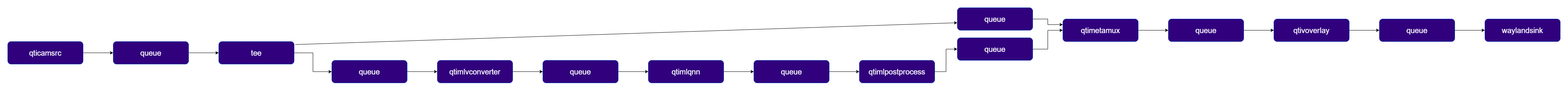

Example Pipeline

Download Required Files

File	Download	Save as
YOLOX W8A8 model	Qualcomm AI Hub — YOLOX	`yolox_w8a8.tflite`
Detection labels	yolov8.json	`yolov8.json`
Sample video	Input video	`ai_demo_sample.mp4`

Copy files to device

# Replace $HOME to the appropriate device path before running the commands.
# For QLI:    /root
# For Ubuntu: /home/ubuntu
# Modify this based on your platform and ensure files are copied to the correct location on the device.
# Run from your host machine — replace <user> and <device-ip>

ssh <user>@<device-ip> "mkdir -p $HOME/{models,labels,media,media/output}"
scp yolox_w8a8.tflite          <user>@<device-ip>:$HOME/models/
scp yolov8.json                  <user>@<device-ip>:$HOME/labels/
scp ai_demo_sample.mp4   <user>@<device-ip>:$HOME/media/

Connect to device

# Run from your host machine — replace <user> and <device-ip>
ssh <user>@<device-ip>

Set environment variables

Run below command on your device

mkdir -p $HOME/{models,labels,media,media/output}
export MODEL_NAME=yolox_w8a8.tflite
export LABELS_NAME=yolov8.json
export SRC_VIDEO_NAME=ai_demo_sample.mp4

Run the pipeline

gst-launch-1.0 -e --gst-debug=2 \
filesrc location=$HOME/media/$SRC_VIDEO_NAME ! qtdemux ! h264parse ! \
v4l2h264dec capture-io-mode=4 output-io-mode=4 ! video/x-raw,format=NV12 ! queue ! \
tee name=t ! qtimetamux name=obj_mux ! qtivoverlay ! waylandsink fullscreen=true sync=false \
t. ! queue ! qtimlvconverter ! queue ! \
qtimltflite model=$HOME/models/$MODEL_NAME delegate=external external-delegate-path=libQnnTFLiteDelegate.so \
  external-delegate-options="QNNExternalDelegate,backend_type=htp,log_level=(string)1;" ! queue ! \
qtimlpostprocess module=yolov8 labels=$HOME/labels/$LABELS_NAME \
  settings="{\"confidence\": 51.0}" ! text/x-raw ! queue ! obj_mux.

Hierarchy

GObject
   GstObject
      GstElement
         qtimetamux

Pad Templates

sink

Capabilities
`video/x-raw(ANY)`	`format: NA`
`audio/x-raw(ANY)`	`format: NA`
Availability: Always
Direction: sink
Pad Name: `sink`

Capabilities
`text/x-raw`	`format: utf8`
`cv/x-optical-flow`	`format: NA`
Availability: On request
Direction: sink
Pad Name: `data_%u`

src

Capabilities
`video/x-raw(ANY)`	`format: NA`
`audio/x-raw(ANY)`	`format: NA`
Availability: Always
Direction: source

Element Properties

Property	Description
`latency`	Additional latency in nanoseconds to allow more time for upstream to produce metadata entries for the current position. Useful in sync mode when metadata generation takes longer than the default hold window. `Type: Unsigned Integer64` `Default: 0` `Range: 0 - 18446744073709551615` `Flags: readable/writable (changeable only in NULL or READY state)`
`mode`	Controls the synchronization strategy used to associate metadata buffers with main media frames. `Type: Enum` `Default: 0, "async"` `Range:` `(0): async - No timestamp synchronization. The N-th incoming media frame is held until the N-th data buffer has been received on all data pads. Suitable for fixed, predictable sequences` `(1): sync - Timestamp-based synchronization. Each incoming frame is held for up to 1 / framerate (video) or 1 / rate (audio). Metadata with matching timestamps is attached before the frame is forwarded downstream` `Flags: readable/writable (changeable only in NULL or READY state)` `Example: mode="sync" (or) mode=1`
`queue-size`	Sets the size of the internal input and output queues. `Type: Unsigned Integer` `Default: 10` `Range: 3 - 4294967295` `Flags: readable/writable (changeable only in NULL or READY state)`

Main Buffer, Metadata Synchronization and Latency control

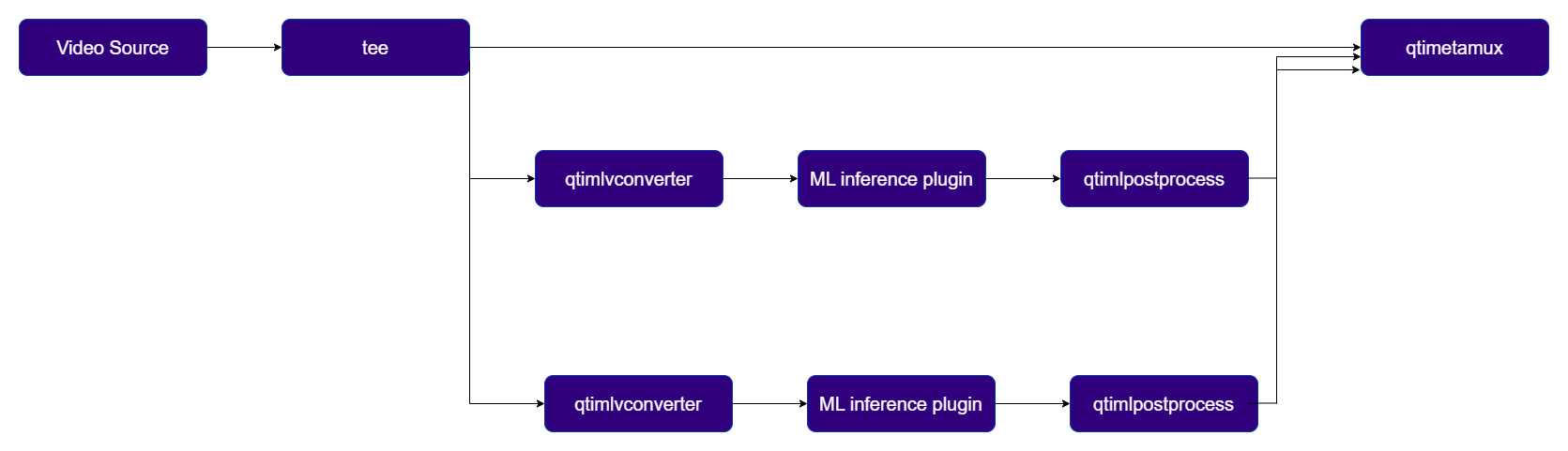

The plugin is designed with a single main sink pad that receives the primary video or audio buffers, and multiple auxiliary data pads that collect ML post-processing results or CV motion vectors. Data arriving on auxiliary pads may be provided in string or blob form and is parsed into structured representations. Once parsed, the plugin matches each data buffer to its corresponding main media frame and attaches the result as GstMeta.

Async Mode

This is the default synchronization mode. No timestamp-based matching is performed. Instead, metadata buffers are associated with main frames in strict 1:1 order:

The N-th incoming video/audio frame is held until the N-th data buffer has been received on all data pads.
Once all required data for that frame is available, the metadata is attached.
The enriched buffer is then pushed downstream.

This mode is suitable when media buffers and metadata buffers are produced in a fixed, predictable sequence.

Sync Mode

In sync mode, the plugin performs timestamp-based synchronization. Each incoming main frame is held for a limited time window of up to 1 / framerate seconds (video) or 1 / rate seconds (audio). For example, at 30 fps, the frame may be held for approximately 33.3 ms. During this hold period, the plugin waits for data buffers on its auxiliary pads whose timestamps match the timestamp of the main frame:

If all expected data buffers arrive within the time window, they are attached before forwarding.
If one or more auxiliary pads do not provide matching buffers in time, only the successfully matched metadata is attached and the main buffer is released downstream.

Latency Control

In some use cases, the default hold period in sync mode may be too short — especially when metadata generation takes longer than expected. The latency property extends the waiting period by accepting an integer value in nanoseconds, allowing the plugin to wait longer for late-arriving data buffers before forwarding the main frame.

Usage

Person Detection

Download Required Files

File	Download	Save as
YOLOX W8A8 model	Qualcomm AI Hub — YOLOX	`yolox_w8a8.tflite`
Detection labels	yolov8.json	`yolov8.json`
Sample video	Input video	`ai_demo_sample.mp4`

If any downloaded file is a .zip archive, extract it on your host machine before copying: unzip filename.zip

Copy files to device

# Replace $HOME to the appropriate device path before running the commands.
# For QLI:    /root
# For Ubuntu: /home/ubuntu
# Modify this based on your platform and ensure files are copied to the correct location on the device.
# Run from your host machine — replace <user> and <device-ip>

ssh <user>@<device-ip> "mkdir -p $HOME/{models,labels,media,media/output}"
scp yolox_w8a8.tflite           <user>@<device-ip>:$HOME/models/
scp yolov8.json                  <user>@<device-ip>:$HOME/labels/
scp ai_demo_sample.mp4    <user>@<device-ip>:$HOME/media/

Connect to device

# Run from your host machine — replace <user> and <device-ip>
ssh <user>@<device-ip>

Set environment variables

Run below command on your device

export MODEL_NAME=yolox_w8a8.tflite
export LABELS_NAME=yolov8.json
export SRC_VIDEO_NAME=ai_demo_sample.mp4

Run the pipeline

gst-launch-1.0 -e --gst-debug=2 \
filesrc location=$HOME/media/$SRC_VIDEO_NAME ! qtdemux ! h264parse ! \
v4l2h264dec capture-io-mode=4 output-io-mode=4 ! video/x-raw,format=NV12 ! queue ! \
tee name=t ! qtimetamux name=obj_mux ! qtivoverlay ! waylandsink fullscreen=true sync=false \
t. ! queue ! qtimlvconverter ! queue ! \
qtimltflite model=$HOME/models/$MODEL_NAME delegate=external external-delegate-path=libQnnTFLiteDelegate.so \
external-delegate-options="QNNExternalDelegate,backend_type=htp,log_level=(string)1;" ! queue ! \
qtimlpostprocess module=yolov8 labels=$HOME/labels/$LABELS_NAME \
settings="{\"confidence\": 51.0}" ! text/x-raw ! queue ! obj_mux.

Detection-Classification Daisy Chain Pipeline

This pipeline demonstrates a cascaded inference approach where the output of one model (Detection) is used to crop regions of interest (ROIs) which are then fed into secondary models (Classification).

Download Required Files

File	Download	Save as
YOLOX model	Qualcomm AI Hub — YOLOX	`yolox-yolo-x-w8a8.tflite`
YOLO labels	yolov8.json	`yolov8.json`
MobileNet model	mobilenet-softmax	`mobilenet_v2_w8a8.tflite`
MobileNet labels	mobilenet.json	`mobilenet_v2.json`
Input video	Input video	`ai_demo_sample.mp4`

Copy files to device

ssh <user>@<device-ip> "mkdir -p $HOME/{models,labels,media}"
scp yolox-yolo-x-w8a8.tflite                     <user>@<device-ip>:$HOME/models/
scp yolov8.json                                  <user>@<device-ip>:$HOME/labels/
scp mobilenet_v2_w8a8.tflite        <user>@<device-ip>:$HOME/models/
scp mobilenet_v2.json                            <user>@<device-ip>:$HOME/labels/
scp ai_demo_sample.mp4                                    <user>@<device-ip>:$HOME/media/

Connect to device

ssh <user>@<device-ip>

Set environment variables

Run below command on your device

mkdir -p $HOME/{models,labels,media}
export MODEL_NAME_1=yolox-yolo-x-w8a8.tflite
export LABELS_NAME_1=yolov8.json
export MODEL_NAME_2=mobilenet_v2_w8a8.tflite
export LABELS_NAME_2=mobilenet_v2.json
export SRC_VIDEO_NAME=ai_demo_sample.mp4

Run the pipeline

gst-launch-1.0 -e --gst-debug=2 \
  qtimlvconverter name=det_conv \
  qtimltflite name=det_infer delegate=external external-delegate-path=libQnnTFLiteDelegate.so external-delegate-options="QNNExternalDelegate,backend_type=htp,log_level=(string)1;" model=$HOME/models/$MODEL_NAME_1 \
  qtimlpostprocess name=det_post module=yolov8 labels=$HOME/labels/$LABELS_NAME_1 settings="{\"confidence\": 51.0}" \
  qtimetamux name=det_mux \
  qtivoverlay name=main_overlay \
  qtimlvconverter name=cls_conv \
  qtimltflite name=cls_infer delegate=external external-delegate-path=libQnnTFLiteDelegate.so external-delegate-options="QNNExternalDelegate,backend_type=htp,log_level=(string)1;" model=$HOME/models/$MODEL_NAME_2 \
  qtimlpostprocess name=cls_post module=mobilenet labels=$HOME/labels/$LABELS_NAME_2 settings="{\"confidence\": 51.0}" \
  qtimetamux name=cls_mux \
  qtivoverlay name=cls_overlay \
  filesrc location=$HOME/media/$SRC_VIDEO_NAME ! qtdemux ! h264parse ! v4l2h264dec capture-io-mode=4 output-io-mode=4 ! video/x-raw,format=NV12 ! queue ! tee name=src_tee \
  src_tee. ! queue ! det_mux. \
  src_tee. ! queue ! det_conv. det_conv. ! queue ! det_infer. det_infer. ! queue ! det_post. det_post. ! text/x-raw ! queue ! det_mux. \
  det_mux. ! queue ! tee name=meta_tee \
  meta_tee. ! queue ! cls_mux. \
  meta_tee. ! queue ! cls_conv. cls_conv. ! queue ! cls_infer. cls_infer. ! queue ! cls_post. cls_post. ! text/x-raw ! queue ! cls_mux. \
  cls_mux. ! queue ! cls_overlay. cls_overlay. ! queue ! waylandsink fullscreen=true sync=false
